Car Aluminum Radiator & Condenser Fin Making Machine For Heat Exchanger Fin Rolling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Components | PLC, Motor | Condition | New |
|---|---|---|---|
| Height Tolerance | +0.03mm, - 0.01mm | Fin Width | 8~200mm (customized) |
| Fin Pitch Tolerance | +/-0.10mm | ||
| Highlight | Automobile Aluminum Fin Making Machine,PLC control Aluminum Fin Making Machine,Customized Size Radiator Fin Forming Machine |
||
Product Description

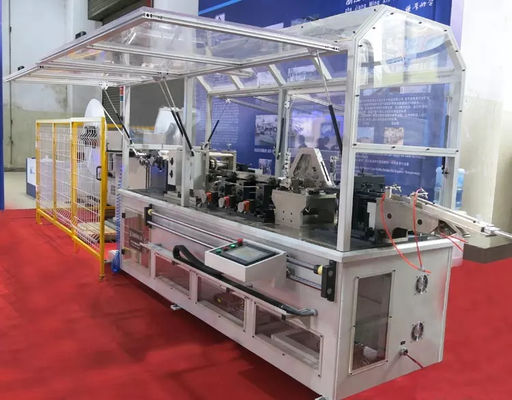

Car aluminum radiator & condenser fin making machine for heat exchanger fin rolling
MACHINE DESCRIPTION
For car radiator manufacturing plant, basically you should have:
1) Aluminum fin making machine
2) Radiator core builder
3) Nitrogen gas shield continuous brazing oven
4) Radiator tank clinching machine
5) Radiator leak tester
This aluminum fin making machine is special designed for forming aluminum foil coil into wave type fin continuously for heat exchanger, radiator and condenser / evaporator purpose.
This machine has many functions such as decoiling, tensioning, feeding, automatic spraying lubricant, fin rolling, fin fixing,
automatic cutting, non-material detecting, blade-blocking auto detecting, over-load automatic stopping, etc.
It is PLC control, inverter speed adjustable, servo feeding, touch screen operation, simple and convenient.
The machine adopts tooling quick changeable design for rolling different fins.
Product features:
1. It can have multi blades,can do maximum 8-10 combination cutting.
2. Automatically cutting and counting
3. It can have 2 rows material rolls machine.
4. Size can be customized
5. It can be programmed.
6. It can have shields or no shields
7. high precision
8. high speed
9. can be customized according to customer requirements of different shapes of fin
About us:
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.Does it can change the hob?
The hob is changeable,but the main console is the same,the position where the hob installed must match with the main console.
2.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
3.Does the hob can have multiple fins with different width?
Yes,it does.One set of hob can be single width of fin,also can combine different width size of fins,most can combine 10 different width size of fin in one set of hob.
4.Does one hob can have multiple fin sizes with different heights?
No,one set of hob only can produce single height of one fin,up and down fine-tuning height is not more than 0.1mm.
