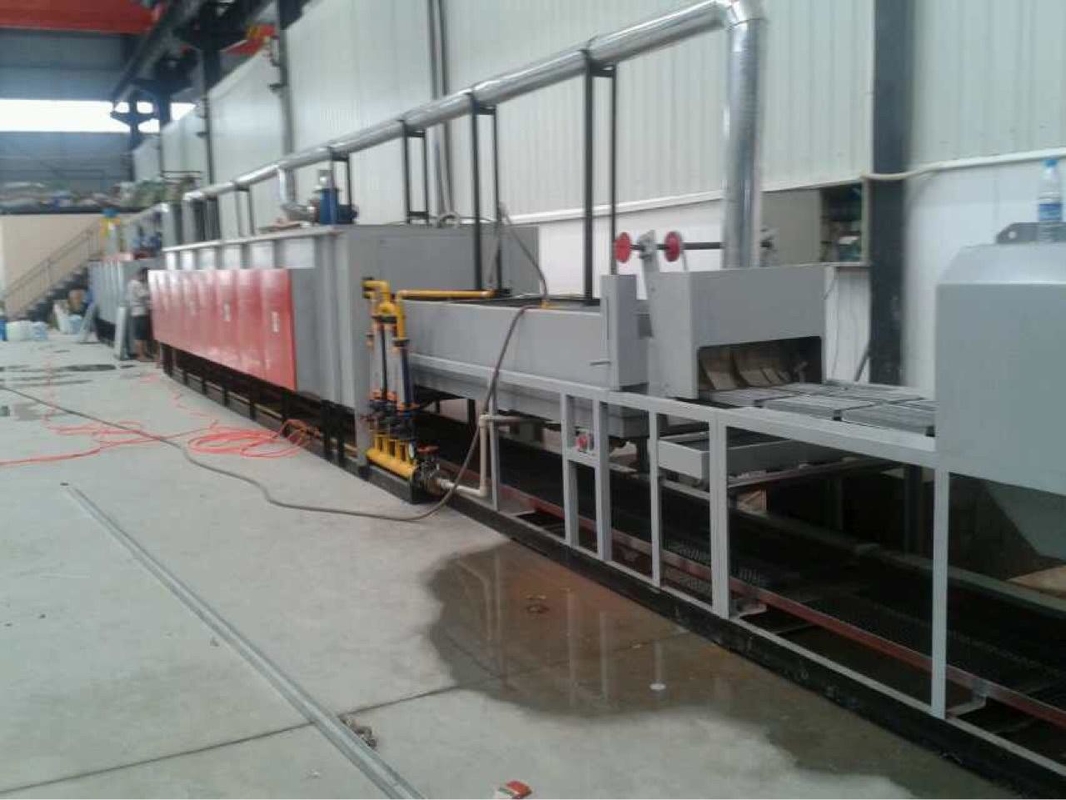

Continuous Aluminum Brazing Furnace CNB Industrial Brazing Equipment 45m-603/H

  • Continuous Aluminum Brazing Furnace CNB Industrial Brazing Equipment 45m-603/H
  • Continuous Aluminum Brazing Furnace CNB Industrial Brazing Equipment 45m-603/H
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mesh Belt Operating Surface Height 900mm Speed 150～600mm/min
Working Station Size 1000mm×250mm Type CNB Furnace
Core Components PLC, Motor
Highlight

Continuous Aluminum Brazing Furnace

,

CNB Aluminum Brazing Furnace

,

603/H Aluminum Brazing Furnace
Leave a Message
Product Description

Continuous Aluminum Brazing Furnace CNB Industrial Brazing Equipment 45m-60 3/H Nitrogen Consumption Radiator Furnace
Product features:

  • Adopt the latest technology and high quality lining materials to ensure the heat preservation performance of the furnace body and have the remarkable effect of energy saving.



  • Fine and reasonable heating furnace partition, high precision advanced temperature control meter hardware selection and software parameter adjustment, so that the furnace temperature control precision is high (±0.2℃), the temperature difference of the product in the brazing area (575℃~650℃) is less than ±3℃;



  • Adoption of advanced frequency conversion speed control conveyor belt control system, so that the work-piece can achieve step-less variable transmission, precisely control the running time of work-piece in each heating zone, to ensure that the aluminum brazing heating curve accurately achieve;



Product quick details:

Mesh belt operating surface height 900mm
Normal operating temperature 600～650℃
Furnace temperature uniformity ±3℃
maximum service temperature 700℃
effective working size 1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size 1050mm×300mm(Straight edge height)
Temperature control zone 6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layout The upper and lower of each section + furnace temperature measurement
design power 240KW±10%
Temperature control mode PID,The work pressure regulating
heating mode resistance wire
length of heating zone 6M
conveying chain SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm



Continuous Aluminum Brazing Furnace CNB Industrial Brazing Equipment 45m-603/H 0


Company introductions:
      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.


FAQ:
1.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.

2.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.

3.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.



4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
